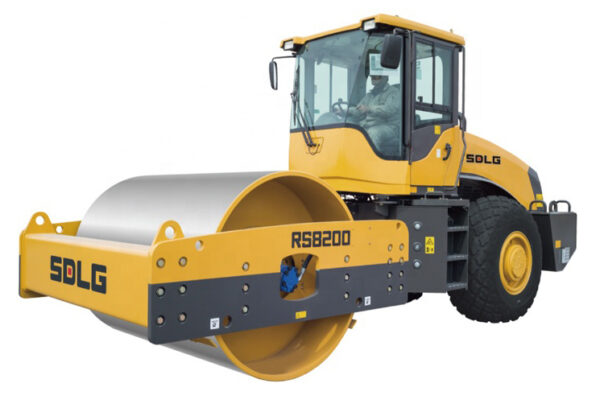

Xe lu rung RS8200

Approach angle back29 Deg

Engine MakeWeichai Deutz

Engine ModelWP6G175E201

Fuel tank capacity220 L

Gradeability without vibration0.3

Machine width2 320 mm

Net power129 Kw @ 2 000 rpm

Danh mục: Máy công trình SDLGTừ khóa: Xe lu rung

Mô tả

Specifications
Approach angle back	29 Deg
Articulation either side	35 Deg
Centrifugal force high / low amp	360 / 280 kN
Drum width	2 150 mm
Engine Make	Weichai Deutz
Engine Model	WP6G175E201
Fuel tank capacity	220 L
Gradeability without vibration	0.3
Machine width	2 320 mm
Net power	129 Kw @ 2 000 rpm
Nominal amplitude	2.0 / 1.0
Operating weight	20 000 kg
Overall height	3 185 mm
Overall length	6 370 mm
Static weight on drum	10 000 kg
Transmission type	Fixed shaft power shift
Turning radius	6 600 mm
Type	Single drum compactor
Vibration frequency	28 / 35 Hz

Xe lu rung RS8200
