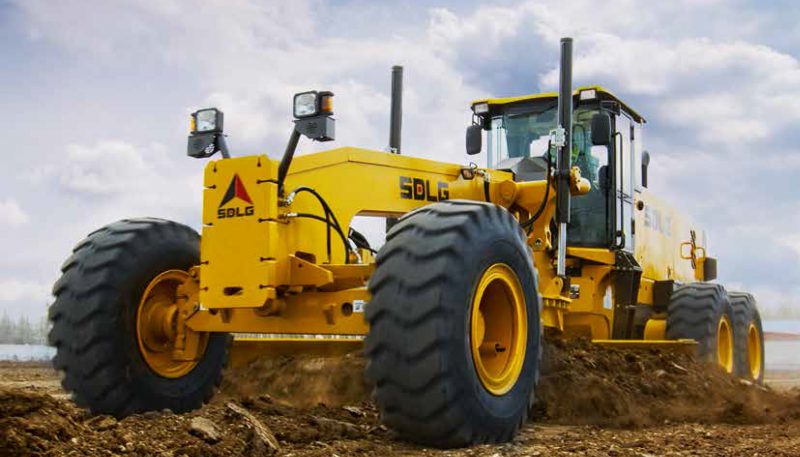

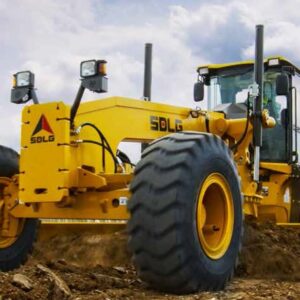

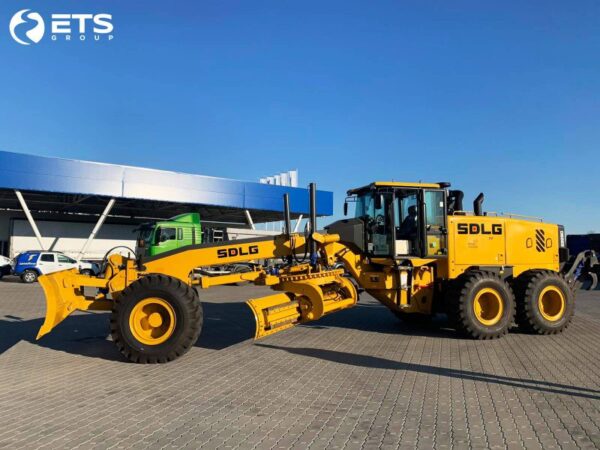

Máy san gạt G9220


Operating Weight: 16,500 kg

Standard blade width: 4,267 mm

Blade diameter: 1,626 mm

Min. turning radius: 7.6 m

Blade lift above the ground: 445 mm

Fuel consumption: 10-13 litres/hr

Engine: BF6M1013-ECP

Địa điểm mua hàng:

Giao hàng lắp đặt toàn quốc.

Chat Facebook

W x L x H 9235 x 2710 x 3240 mm
Width – front tyre centre lines 2,260 mm
Wheel base 6,480 mm
Front wheel lean ± 18° on each side
Front axle oscillation ± 16°
Max. steering range ± 50° left/right
Articulation ± 23°
Blade diameter 1,626 mm
Cutter size (WxL xD) 4267 x 635 x 25 mm
Min. turning radious 7.6 m
Blade depth 787 mm
Blade tilt forward 47° backward 5°
Max. tractive force 87 kN
Max. torque 819 Nm
Emission standard Tier 2
