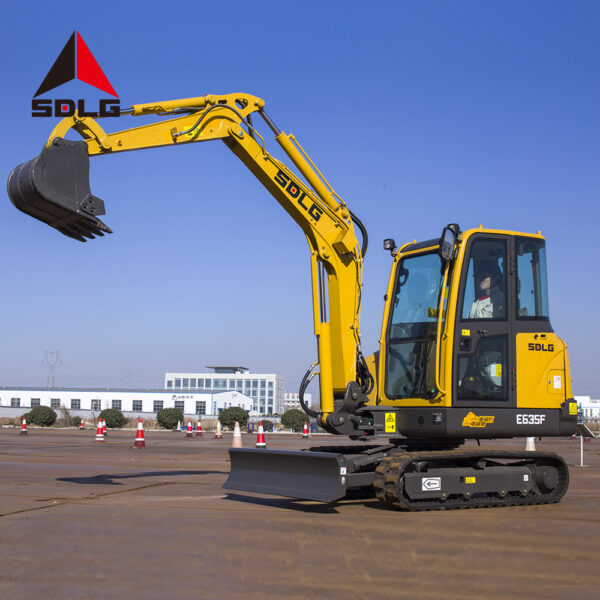

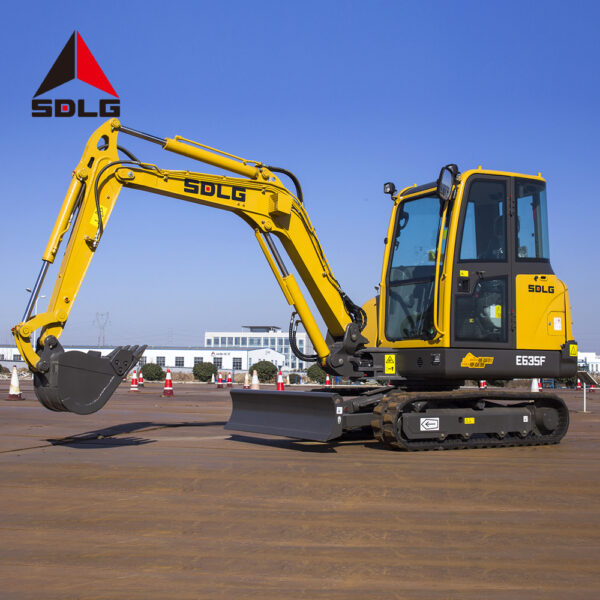

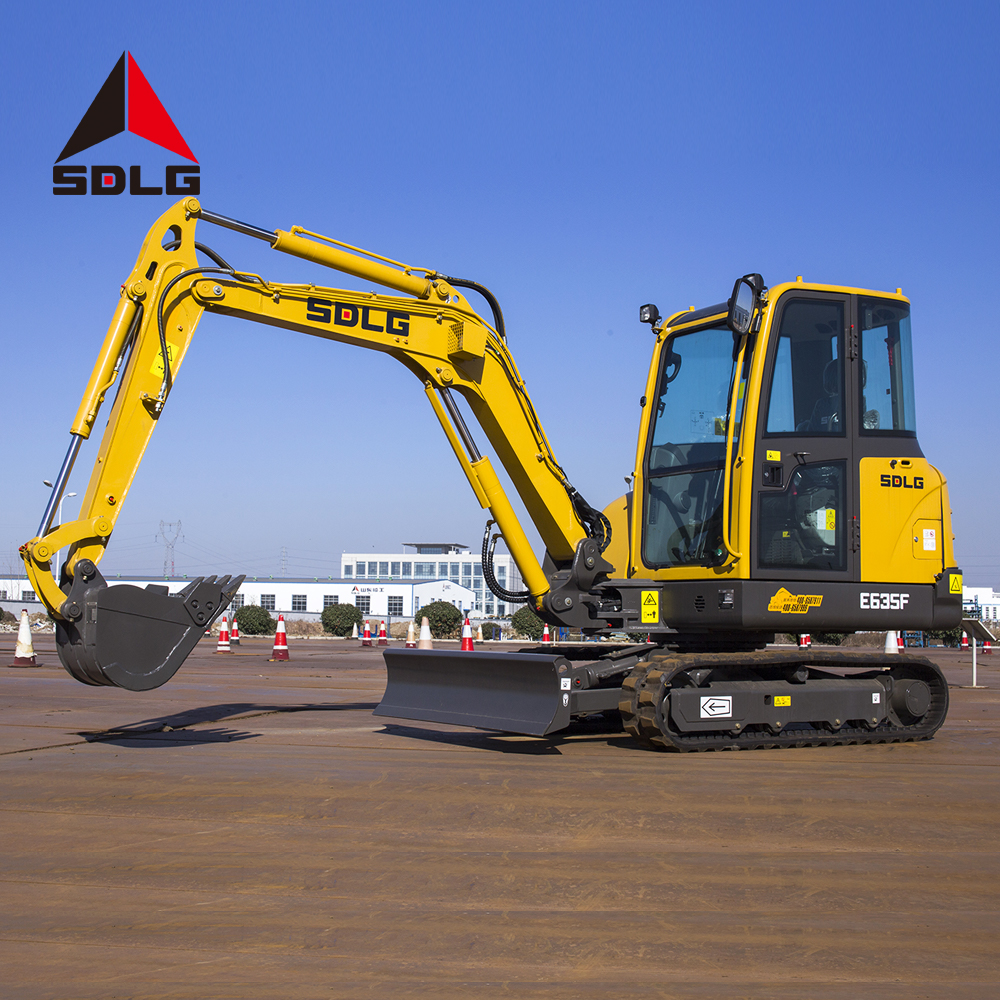

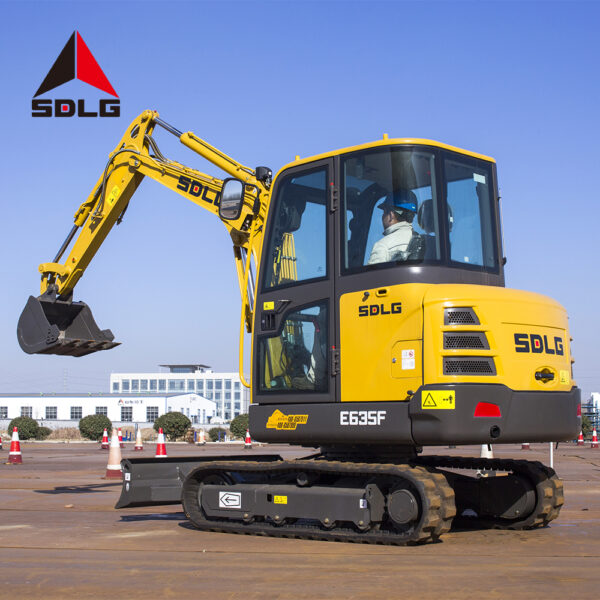

| E635F | E035FM3481AT9A0 |
| Basic configuration | |
| Engine | Yanmar 4TNV88-BSLG |
| Working device | Standard bucket rod |
| Hydraulic system | Pilot control, load sensing |
| Drive mode | Hydraulic drive |
| Cab | Ordinary cab |
| Heating & Cooling | Air conditioner |
| Other configuration | GPS system |
| Dozer blade 1940 | |
| Standard bucket(0.11m3) | |
| Detailed configuration | |
| Overall dimension | |
| L*W*H | 5165*1620*2450mm |
| Overall width of upper assembly | 1580mm |
| Tail swing radius | 1400mm |
| Overall height of engine hood | 1535mm |
| Ground clearance of counterweight | 590mm |
| Wheelbase | 1602mm |
| Crawler pad width | 300mm |
| Min. ground clearance | 257mm |
| Overall height of boom | 1585mm |
| Overall parameters | |
| Bucket capacity | 0.11m3 |
| Overall operating weight | 3600kg |
| Max. excavation force | 32kN |
| Slew speed | 9.5r/min |
| Traveling speed(low/high) | 2.8/4.8km/h |
| Average ground pressure | 33.5kPa |
| Max. digging radius | 5300mm |
| Max. digging depth | 3085mm |
| Max. digging height | 4800mm |
| Max. dumping height | 3420mm |
| Min. front slewing radius | 2040mm |
| Engine | |
| Model | 4TNV88-BSLG |
| Type | Four-stroke, water-cooled,Inline |
| engine power | 26.3kw |
| Displacement | 2190ml |
| Cylinder bore/Stroke | 88*90mm |
| Emission standard | GB 20891-2014(China Phase II) |
| Max. torque | 143.5N.m |
| Min. fuel-consume ratio | 244g/kW.h |
| Traveling/swing system | |
| Qty. of carrier rollers(single side) | 1 |
| Qty. of track rollers(single side) | 4 |
| Traveling brake type | Wet and disc type |
| Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
| Swing brake type | Wet and disc type |
| Hydraulic system | |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | Constant power load sensitive single pump |
| Max. flow | 99L/min |
| Main pump model | A10V045 |
| Operating pressure | 234kgf/cm2 |
| Main valve model | SX12 |
| Arm cylinder-cylinder bore*diameter of piston rod*stroke | 1-80*50*670mm |
| Boom cylinder-cylinder bore*diameter of piston rod*stroke | 1-90*50*559mm |
| Bucket cylinder-cylinder bore*diameter of piston rod*stroke | 1-70*45*490mm |
| Fill capacity | |
| Fuel | 55L |
| Engine oil | 7.4L |
| Hydraulic oil | 80L |
| Traveling reducer | 2*0.6L |
L*W*H 5165*1620*2450mm
Overall height of boom 1585mm
Bucket capacity 0.11m3
Overall operating weight 3600kg
Traveling speed(low/high) 2.8/4.8km/h
Model 4TNV88-BSLG
engine power 26.3kw
